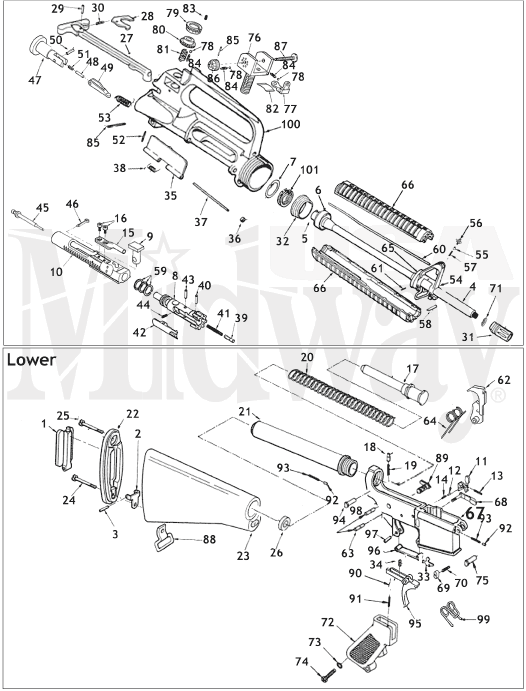

MidWayUSA - AR15



  1. Access Door Assembly
  2. Access Door Hinge
  3. Access Door Hinge Pin
  4. Barrel
  5. Barrel Extension
  6. Barrel Nut
  7. Barrel Retaining Ring
  8. Bolt
  9. Bolt Cam Pin
  10. Bolt Carrier
  11. Bolt Catch
  12. Bolt Catch Plunger
  13. Bolt Catch Roll Pin
  14. Bolt Catch Spring
  15. Bolt Key
  16. Bolt Key Screw
  17. Buffer Assembly
  18. Buffer Retainer
  19. Buffer Retainer Spring
  20. Buffer Spring
  21. Buffer Tube
  22. Buttplates & Recoil Pads
  23. Buttstock
  24. Buttstock Screw Lower
  25. Buttstock Screw Upper
  26. Buttstock Spacer
  27. Charging Handle
  28. Charging Handle Latch
  29. Charging Handle Latch Pin
  30. Charging Handle Latch Spring
  31. Compensator
  32. Delta Ring
  33. Disconnector
  34. Disconnector Spring
  1. Ejection Port Cover
  2. Ejection Port Cover
    Hinge Pin Snap Ring
  3. Ejection Port Cover
    Pin
  4. Ejection Port Cover
    Spring
  5. Ejector
  6. Ejector Pin
  7. Ejector Spring
  8. Extractor
  9. Extractor Pin
  10. Extractor Spring
  11. Firing Pin
  12. Firing Pin Retaining Pin
  13. Forward Assist
  14. Forward Assist Dentent
  15. Forward Assist Pawl
  16. Forward Assist Pawl Roll Pin
  17. Forward Assist Pawl Spring
  18. Forward Assist Pin
  19. Forward Assist Spring
  20. Front Sight Base
  21. Front Sight Detent
  22. Front Sight Post
  23. Front Sight Spring
  24. Front Sight Taper Pin
  25. Gas Ring
  26. Gas Tube
  27. Gas Tube Roll Pin
  28. Hammer
  29. Hammer Pin
  30. Hammer Spring
  31. Handguard Cap
  32. Handguard Set
  1. Lower Receiver
  2. Magazine Release
  3. Magazine Release Button
  4. Magazine Release Spring
  5. Peel/Crush Washer
  6. Pistol Grip
  7. Pistol Grip Lock Washer
  8. Pistol Grip Screw
  9. Pivot Pin
  10. Rear Sight Base
  11. RSB: Aperture
  12. RSB: Ball Bearing
  13. RSB: Elevation Index
  14. RSB: Elevation Knob
  15. RSB: Elevation Knob Spring
  16. RSB: Flat Spring
  17. RSB: Index Screw
  18. RSB: Spring
  19. RSB: Spring Pin
  20. RSB: Windage Knob
  21. RSB: Windage Knob Screw
  22. Rear Swivel
  23. Selector
  24. Selector Detent
  25. Selector Detent Spring
  26. Take Down Detent
      Pin (Front & Rear)
  27. Take Down Detent
      Spring (Front & Rear)
  28. Takedown Pin
  29. Trigger
  30. Trigger Guard
  31. Trigger Guard Roll Pin
  32. Trigger Pin
  33. Trigger Spring
  34. Upper Receiver
  35. Weld Spring
